Bumper Conversion


Ok here are the pictures of the Fox fiberglass reinforcement to my 94GT

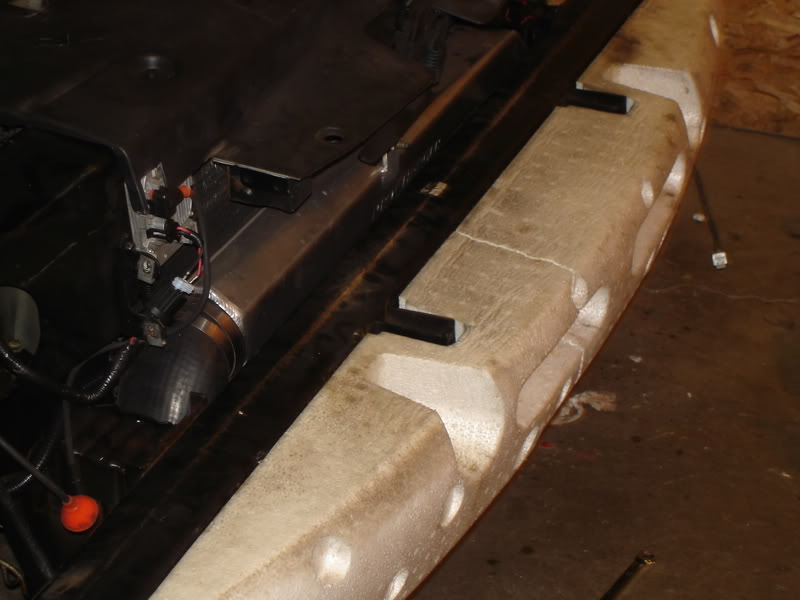

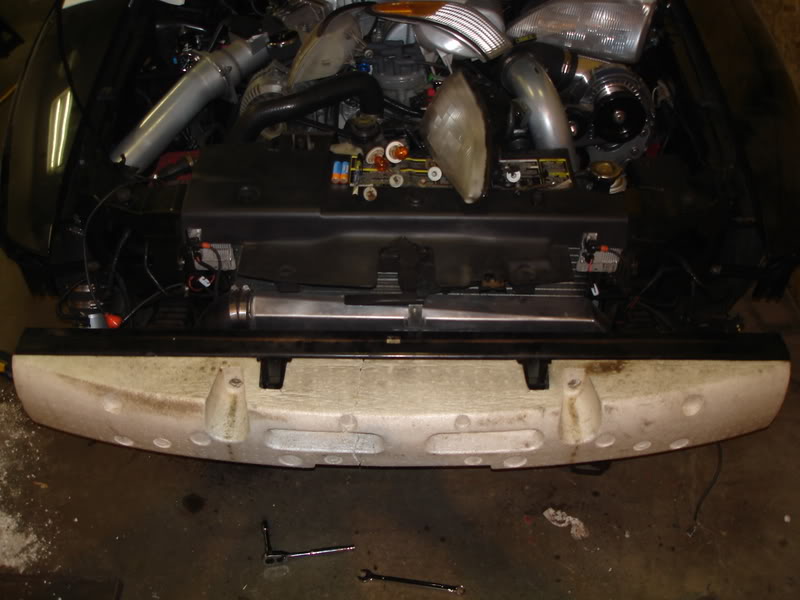

As you can see the stock steel/styafoam bumper is right up tight to my intercooler.
Attachment 22981
Attachment 22982

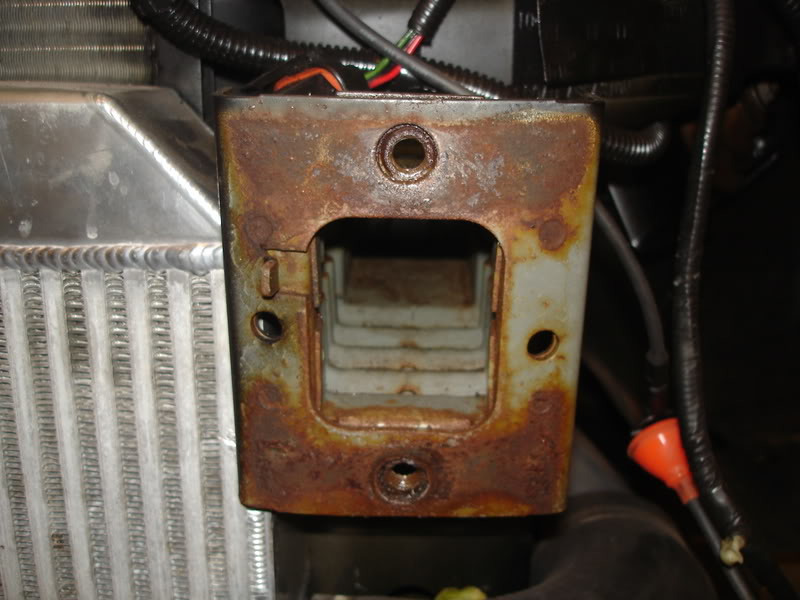

So I removed it and found cancer......That was not good.
Attachment 22983

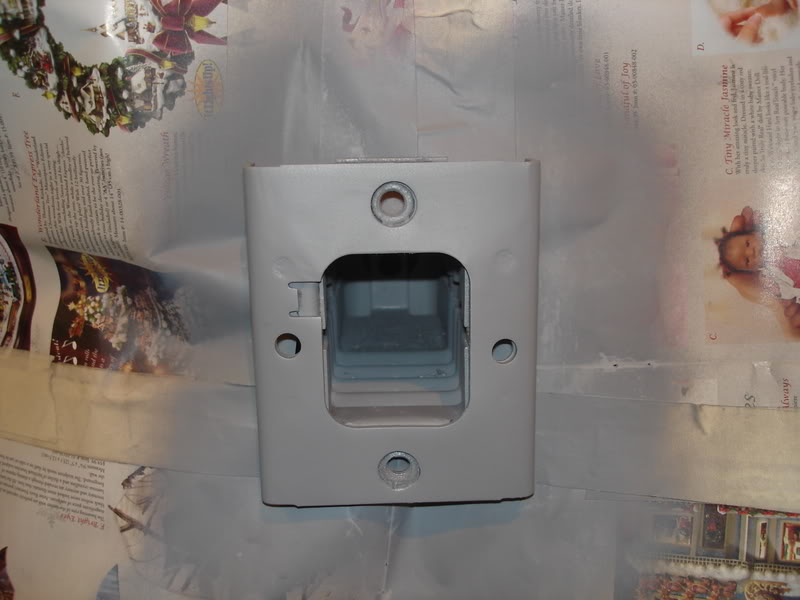

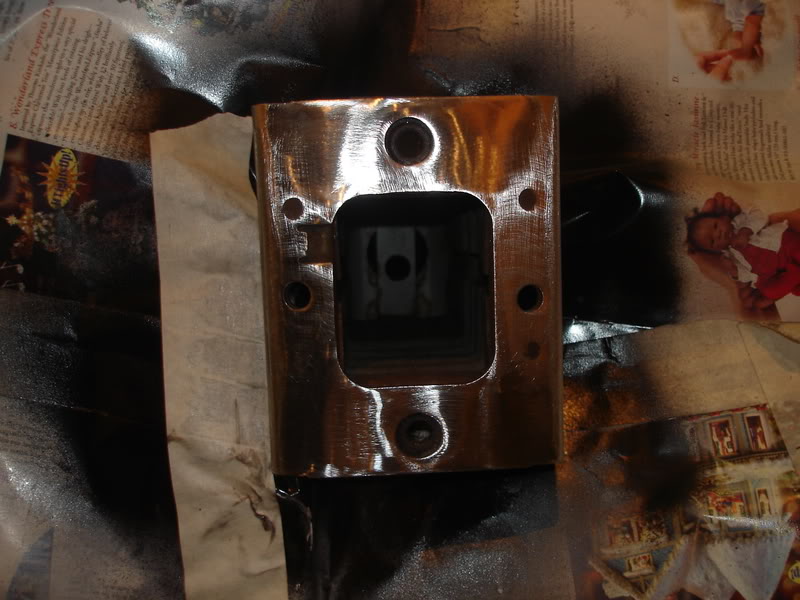

Bye Bye cancer
Attachment 22984
Attachment 22985

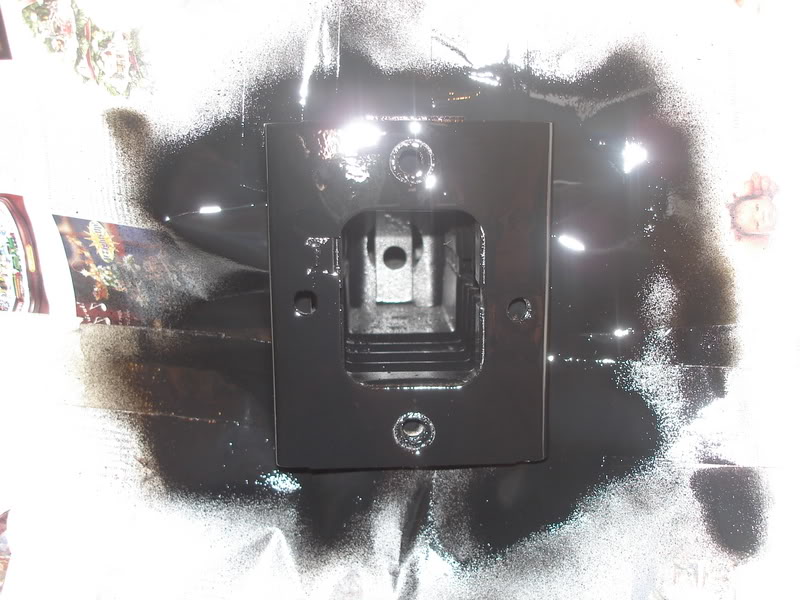

Back to normal
Attachment 22986

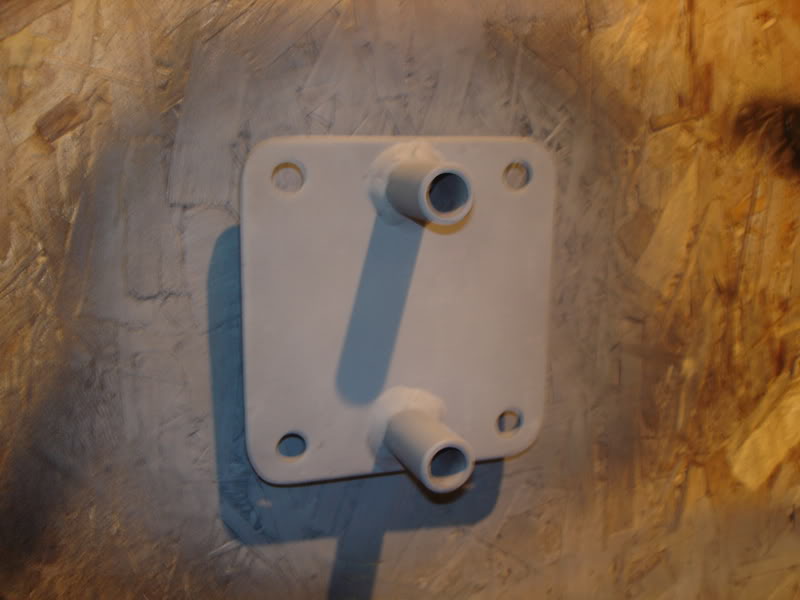

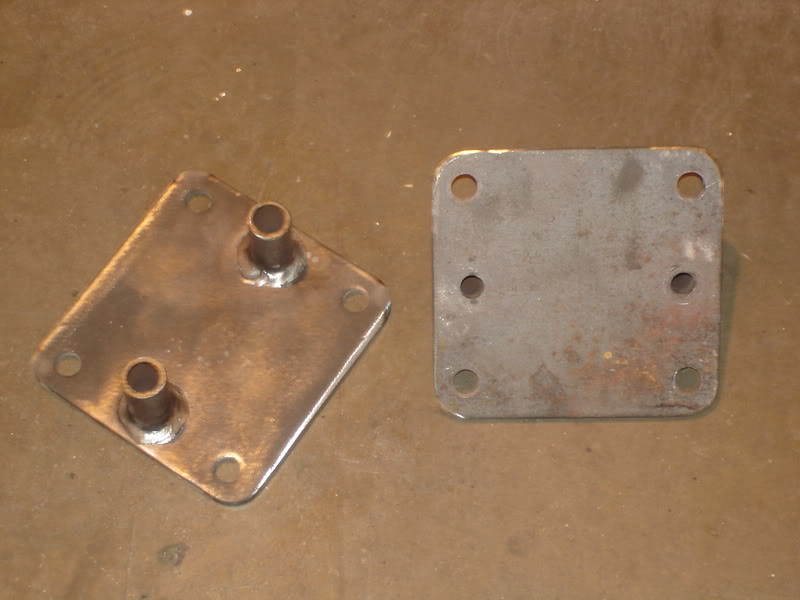

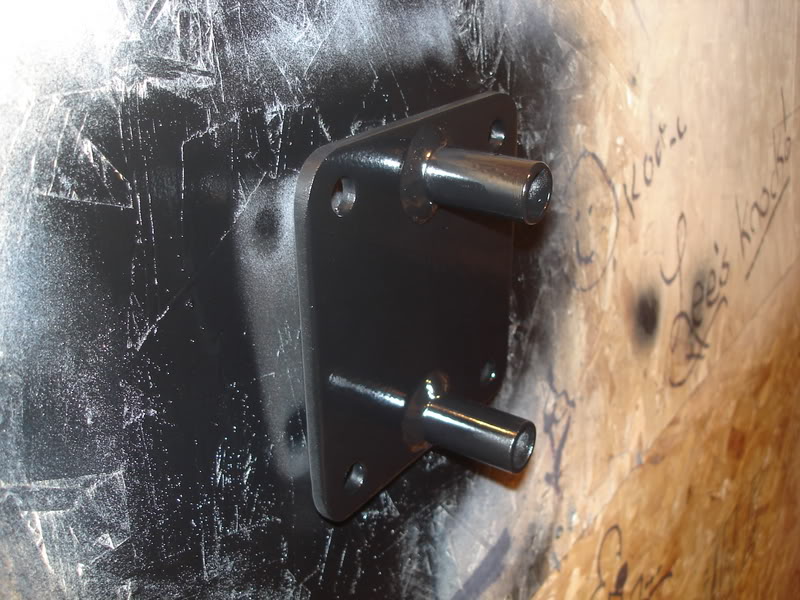

Then I made new mounts
Attachment 22987
Attachment 22988
Attachment 22989

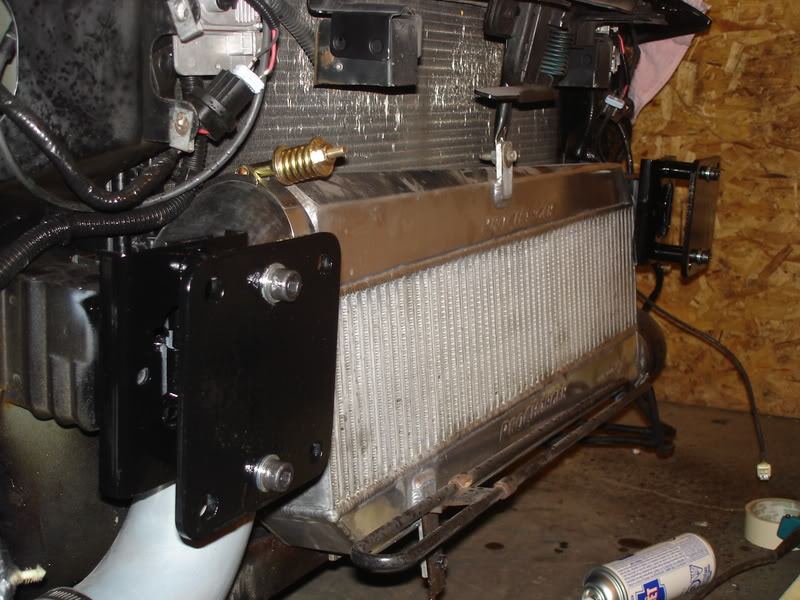

Once the new mounts were completed I installed them onto the car.
Attachment 22990

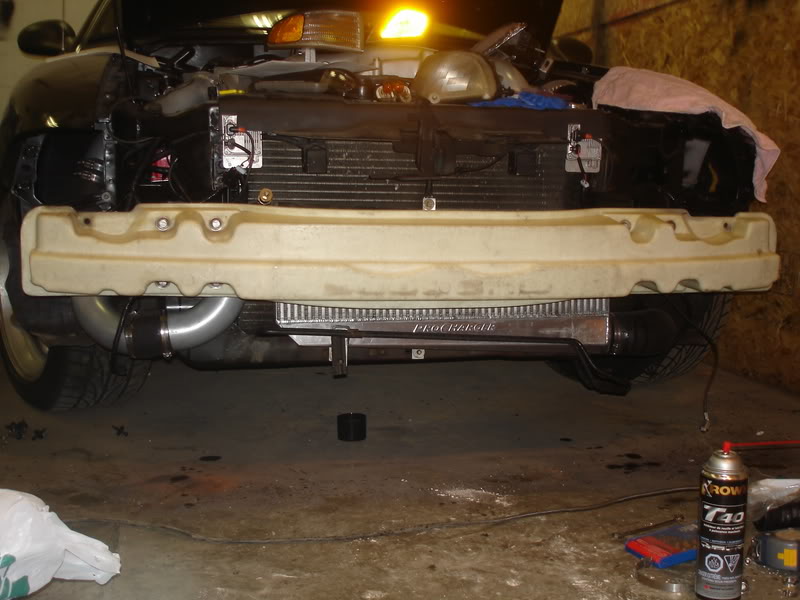

After the mounts were bolted down, it was now time to install the Fox fiberglass reinforcement bumper on, with stainless steel hardware ;)
Attachment 22991

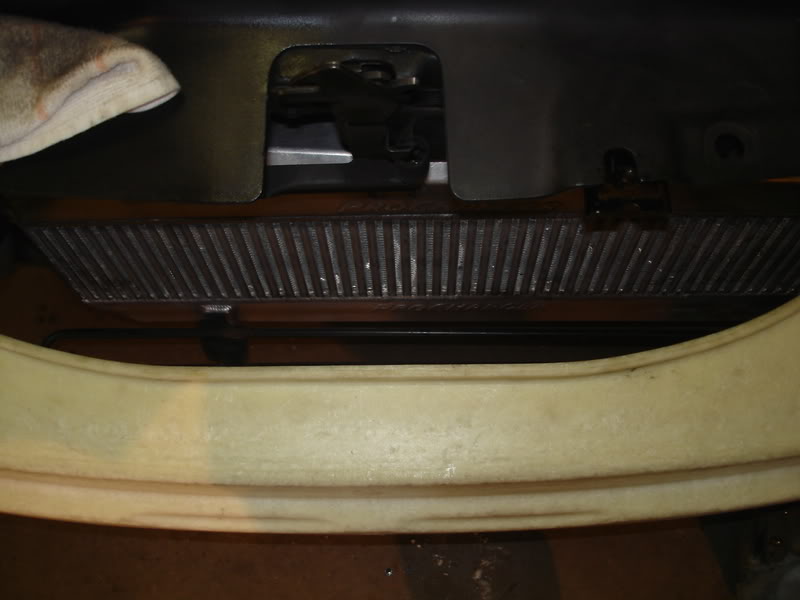

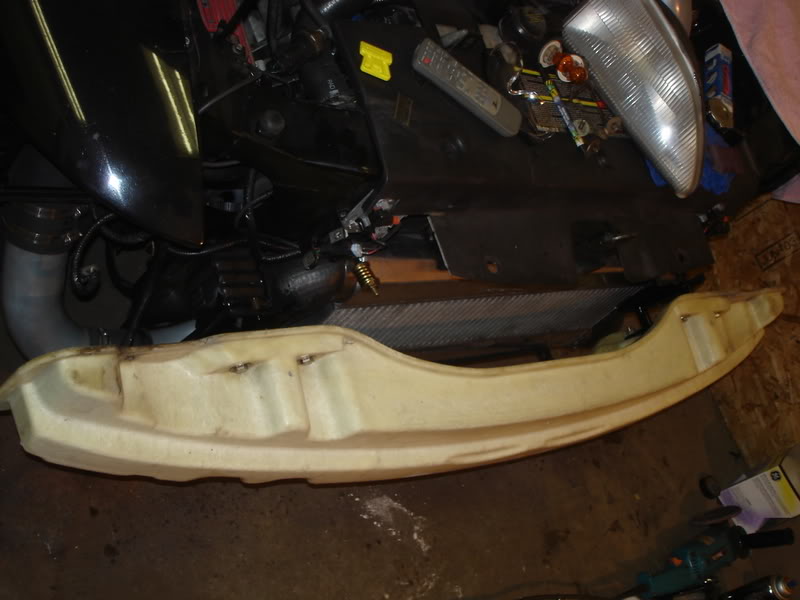

As you can see there is LOTS more room to my intercooler with the bumper swap.
Attachment 22992
Attachment 22993
And again from this
Attachment 22981

It was also a weight reduction, if you would like to do the same send me a PM and ill help you the best I can ;)
Yes the bumper cover fits.

Thanks
Keith

Turned out pretty good!

storm: please dont show me pics of the motor makes me jelous:wink: just joking nice job!.... and can i borrow your sc for the month of april and may:biggrin:

For a small fee :hump: shouldn't be a problem ;) lmao

Thanks guys.

Is there no metal bumper support with that piece of foam?

I want to put a FMIC in but I'm not too sure on removing or cutting the bumper support.

The bumper is pretty much only to hold the front bumper cover up and in place.
The Foam is attached to the bumper by rivits.
Then once you remove the bumper you will be looking at the collapsable mount shown in picture 3, 4, 5 and 6 (Going from top to bottom).

No worries on cutting bumper or bumper support. never touched a thing when i did mine.

Well the metal support was removed, I would be concerned in the event of a crash. I want to do it, but I don't... if you understand what I mean.

Stang Illusions 5.0L, have any more pictures of your intercooler setup with the pipe routing?

You still interested in seeing pics?

If you have any. Still undecided if I'm going to do it or not though.
