New member looking for tech advice/help.


Hello all, I'm new to the forum and I'm looking for pointers on my current project build. It's an old BMW with the drivetrain from an 89 Foxbody 5.0L.

I brought it to a local shop and had the transmission and engine mounts made but now I have it back and I'm a little overwhelmed. I'm looking at making a to-do list and thought I'd run it by a group of Mustang enthusiasts.

Engine/transmission mounted:

Attachment 25902

Attachment 25903

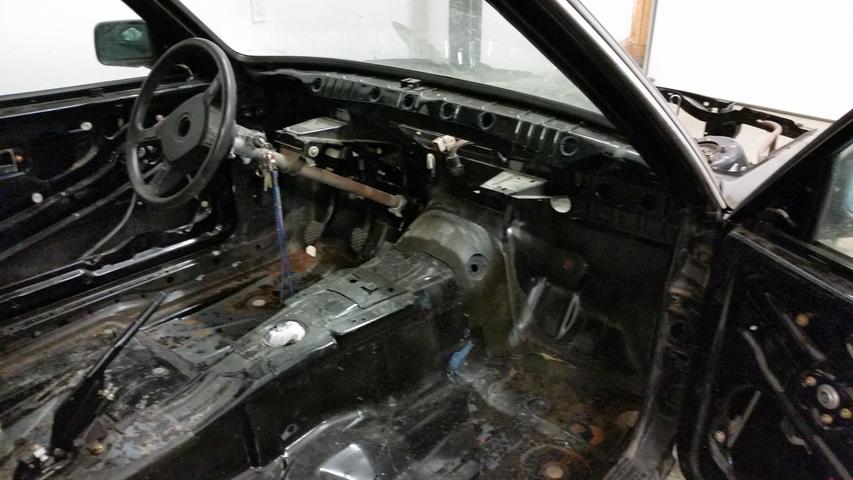

Interior is bare:

Attachment 25904

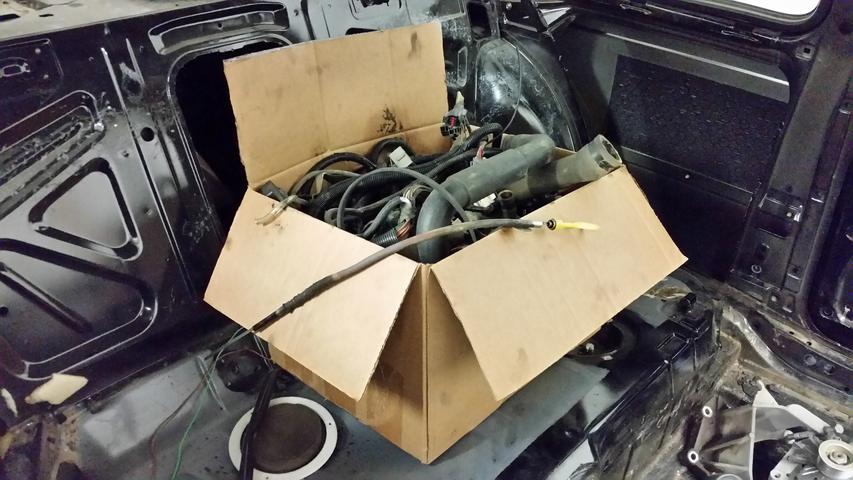

Box of Mustang parts:

Attachment 25905

So my thoughts are:

- Fuel - I had installed a Walbro 255lph fuel pump earlier that I will wire for the Mustang ECU. I will also need to run new fuel lines as the BMW had some weird inline parts in the fuel system (evap stuff).

- Ignition/ECU - I'm running a completely stock ECU and wiring harness that ran the engine when it was in the Mustang I pulled it out of. I am a little confused by the system, I have the wiring from the ECU to the motor but I can't remember where the wiring that powers and control the fuel pump come from.

- Coolant - I'm a little worried about fitting the radiator so I think I need to switch to an electric fan setup and I'll try to use the factory BMW rad and some universal coolant lines.

- Driveshaft - I'm going to take the two driveshafts to a local driveshaft shop and have them fab something up.

- Exhaust - My goal right now is to just get the engine running and the car moving on it's own so exhaust is low on my priority. The headers and collector are already built so the rest should be simple.

- Lights - Again I just want it to run but I think I'm going to make a simple system for the headlights, taillights and turn signals.

- Steering - I'm going with a non powered steering rack so this is pretty much done.

- Brakes - I'm using a different master cylinder that is meant to fit with a larger engine and was used in this shell previously, this shouldn't be too bad but we'll see.

Anything I'm missing?

This may not be the best place to make this thread but it made sense to me :D.

Wow looks like you've got some work ahead of you, it should end up a pretty cool ride when you are all done though. I've got to say that your questions are over my head but there should be someone here that can help.

Welcome to CMOC! Did you buy the car from Calgary. in 2010 or 2011 I went to a show in Calgary at the grey eagle and there was a guy there with an older beemer with the 5.0 ford?

Welcome to CMOC, wow, what a mess. Good luck with your project, I'm sure it's been done, time, patience and money. lol

Ya, everytime I go out to the garage I look at it and I think "This used to be a nice running E30." now I've gone and done this, haha.

This is all me, one day I was talking to my buddy about how bored I was and he said I should modify his BMW for him, I said sure, he signed the car over to me and I proceeded to wreck it.

The only reason I haven't given up is that the concept is fairly simple as I'm not using any BMW wiring. It's pretty much just getting a Mustang 5.0L to work outside of a Mustang, the BMW doesn't really come into play at all now that the mounts have been made.

The closer to spring the more motivated I become.

Here's a guy on another Mustang forum that did a similar swap, then had the car up for sale later ... not sure if it went to a new home or not. You can likely glean some info from the thread, and maybe message the person for additional help.

Fox 5.0 swap

I've seen it done for sure. wish you luck and you should post up updates here!

Thanks for the link, I'll definitely look at his build.

Thanks, I will. It'll probably be a slow process.

Welcome. Very interesting project, gonna be very cool.
