SN95 Mustang Electrical Schematics
Electrical schematics / manuals / diagrams for SN95 Ford Mustangs.

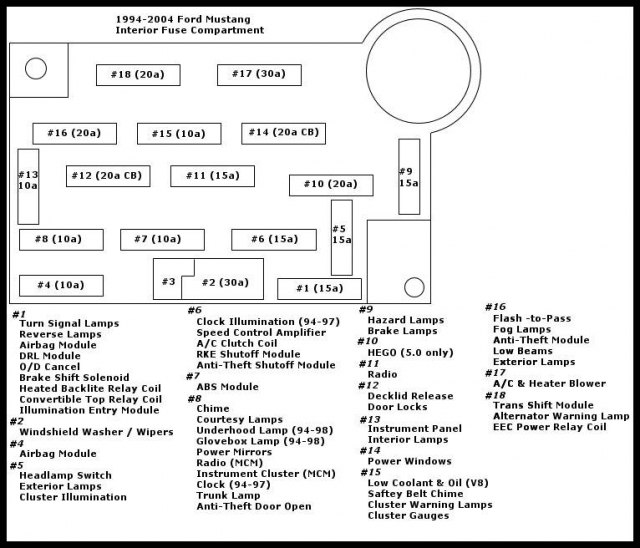

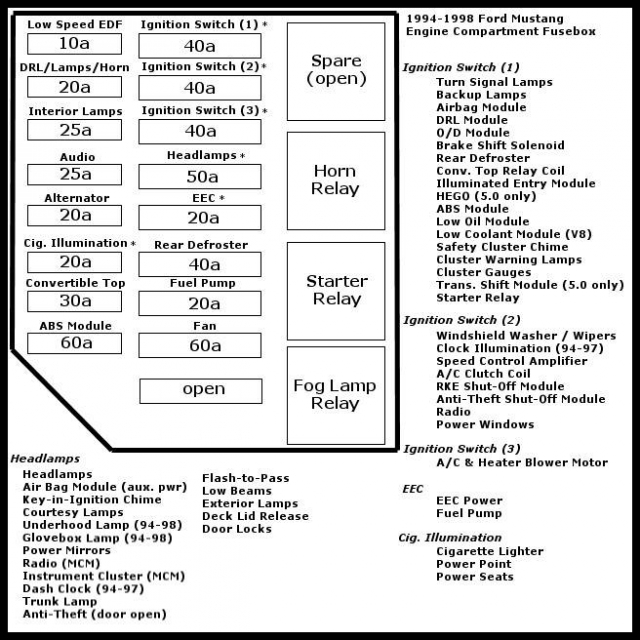

Attached Thumbnails SN95 Mustang Electrical Schematics-151.jpg   SN95 Mustang Electrical Schematics-152.jpg   SN95 Mustang Electrical Schematics-153.jpg   SN95 Mustang Electrical Schematics-154.jpg   SN95 Mustang Electrical Schematics-155.jpg
