347 Big Bore Dart Block Built by FORDSTROKERS.com

NEVER USED; NEVER INSTALLED: $9000
This engine was custom built by FORDSTROKERS.COM, and was designed for 1000+ Hp with a supercharger or turbo application. Jim, owner of Ford Strokers stated this build will handle much more than this.
Check out FORDSTROKERS.COM under liberator long blocks, with all the options I have added, this is over $10,000 US engine.
"BIG BORE" means this was built on a factory Dart SHP 4.125" bore block, but has the 331ci rod ratio however the extra diameter of the bore gives 347ci displacement.
I am the original purchaser, and I will pass on the build sheet at time of purchase. This has a foxbody timing chain cover also.
**Note: The pictures show a lower intake however this has been removed and this is a long block only
ē Engine:
o Ford Strokers 347cid Big Bore
o Dart SHP Block o Callies Compstar 4340 Forged Steel 3.250 Crankshaft (Double Keyed)
o Scat 4340 Forged Steel 5.400 Connecting Rods with ARP 2000 Bolts/ Internally 0 Balanced
o Wiseco 2618 Forged Piston (20cc) 4.125 (gas ports & 0.200 wall tool steel pins)
o Wiseco GFX Ring Package o Precision Blueprinted Melling High Volume Race Oil Pump
o Moroso Oil Pump pick and Oil Pan
o Custom Camshaft
o Comp Cams Ultra Pro Magnum Rocker Arms
o Harland Sharp Rocker Stud Girdle
o Edelbrock Victor Jr Aluminum Cylinder Heads, CNC ported
Attached Thumbnails

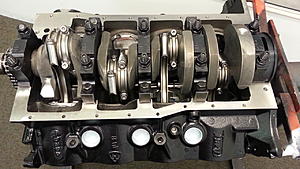

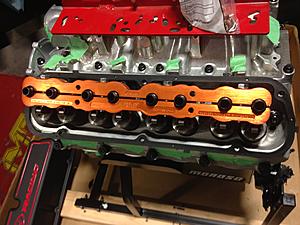

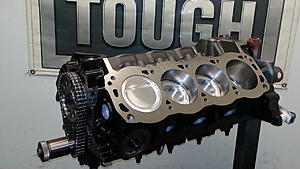

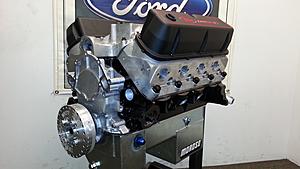

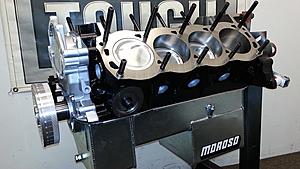

347 Big Bore Dart Block Built by FORDSTROKERS.com-daw-5.jpg   347 Big Bore Dart Block Built by FORDSTROKERS.com-daw-2.jpg   347 Big Bore Dart Block Built by FORDSTROKERS.com-daw-3.jpg   347 Big Bore Dart Block Built by FORDSTROKERS.com-daws-4.jpg   347 Big Bore Dart Block Built by FORDSTROKERS.com-img_3824.jpg

Hipshooter is offline
Old 03-04-2018, 07:47 PM   #2
CMOC Newbie
Thread Starter

Join Date: Mar 2018
Location: Kingston
Posts: 4
this is now sold
Hipshooter is offline
Old 03-04-2018, 08:27 PM   #3
Moderator

ChadStang's Avatar

Join Date: Aug 2005
Location: Slave Lake, AB
Posts: 6,686
That didnít take long
