4.6L 4v Tech for the 4V Cobra motors and Mach 1

Steeda CAI Install Done

Old 03-26-2005, 06:58 PM
  #1
CMOC Elite
Thread Starter
iTrader: (2)

gfong's Avatar

Join Date: Nov 2004
Location: SW Ontario
Posts: 1,785
Steeda CAI Install Done

My son and I just installed my Steeda CAI today on the Mach 1. Very easy to install and fitment was good. I would recommend putting the base and the filter in before the heat shield. The instructions say to install everything and than fit into the engine bay. I would put the base in, than attach the air filter and than the heat shield. Worked great once we did it that way. Other way was too big and bulky and did not know if was seated correctly. One note when connecting the shaker inlet tube, becareful attaching as there is not much play in the tube even though it is an accordian style design. MAF screen is out, MAF to base seems like a good sealing fit. MAF seems clocked back from 12:00 to 11:00 according to pre-stock markline on the MAF. Before it sat at the 12 o clock position now with new base it sits at 11.
Fired the car up and no issues. Ran it for about 15 mins and than ran it around the streets up through all the gears. No stalling or other issues to date.

Can't notice any hp/feel difference as it was the first time the car has been out since December. (Glad to have taken it for a scoot today.) Looks okay installed and once engine bay is cleaned tomorrow, will take some pics.

Overall I'm glad I did the Mod and really enjoyed spending time with my 14 year old son whom helped me install it. (Tonight we battle ESPN NHL 2K5 on Xbox)
Peace.

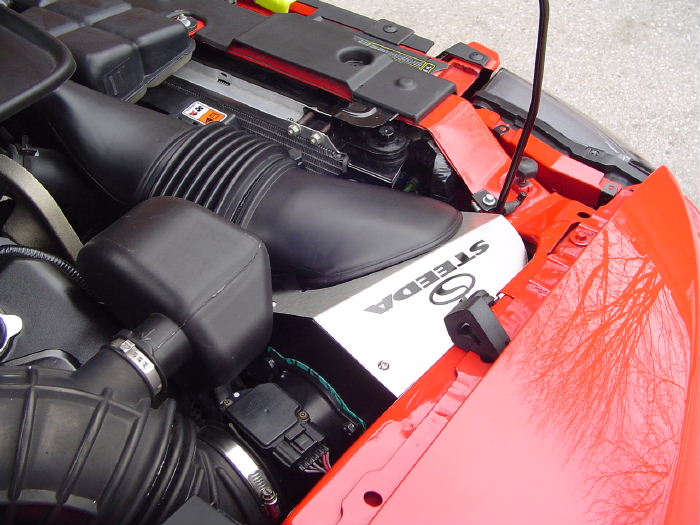

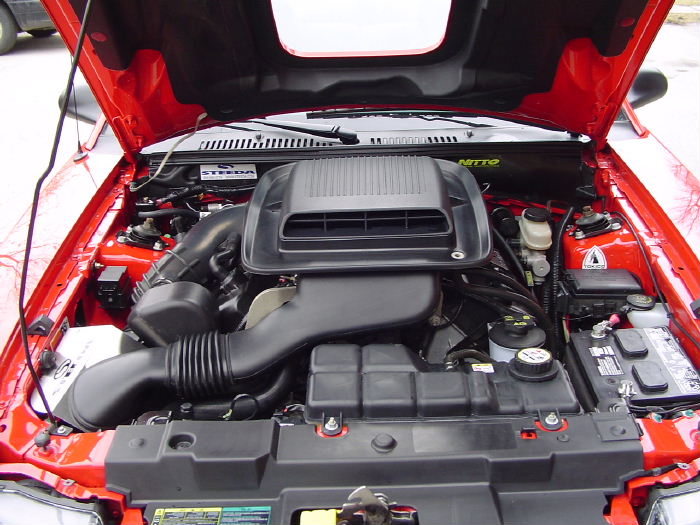

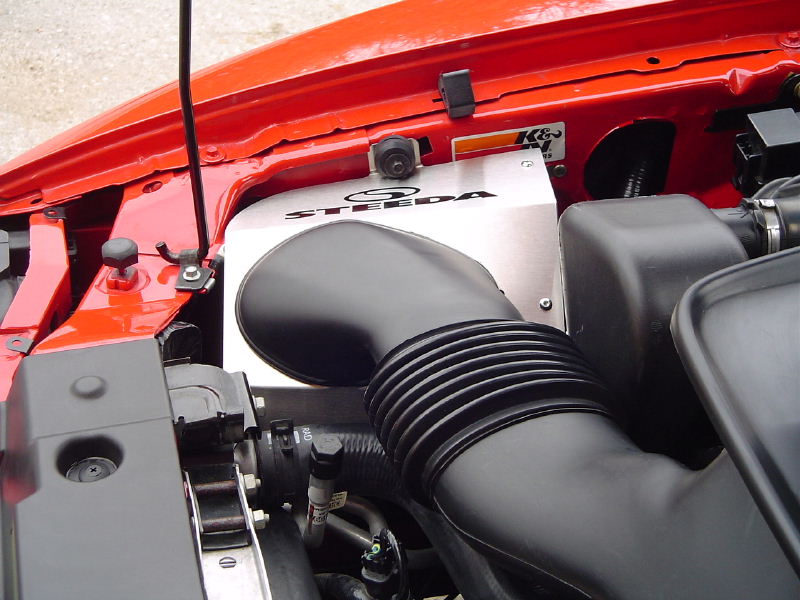

Attached Thumbnails Steeda CAI Install Done-pic0025.jpg   Steeda CAI Install Done-pic0042.jpg   Steeda CAI Install Done-pic0041.jpg
gfong is offline
Old 03-26-2005, 07:20 PM
  #2
CMOC Addict

P.Meister's Avatar

Join Date: Oct 2004
Posts: 536
Good Job

Glad to hear everything went well.....

P.Meister is offline
Old 03-26-2005, 08:15 PM
  #3
CMOC Supreme poster
iTrader: (4)

BlueGT's Avatar

Join Date: Oct 2004
Location: Ajax, Ontario
Posts: 2,668
We need some pics!
BlueGT is offline
Old 03-27-2005, 10:06 AM
  #4
CMOC Rookie

firemedic's Avatar

Join Date: Feb 2005
Location: Pitt Meadows, BC
Posts: 98
I put one on my GT in January.

Like most CAI's, there might not be a big HP gain but it is all part of the "air in" mod package. One thing I certainly notice is the loud sucking sound now associated with throttle apllication. :biggrin:

One other thing I did was to polish the brushed S/S heat shield. Added nice bling bling to the engine bay, looks really sharp.

Only complaint I had was that the 2 small pieces of adaptor hose were missing and it was a bit of a pain trying to get them, so I went and got 2 lengths of blue silicone heater hose. Looks a lot better.
firemedic is offline
Old 03-27-2005, 10:20 AM
  #5
CMOC Elite
Thread Starter
iTrader: (2)

gfong's Avatar

Join Date: Nov 2004
Location: SW Ontario
Posts: 1,785
Originally Posted by firemedic
I put one on my GT in January.

Like most CAI's, there might not be a big HP gain but it is all part of the "air in" mod package. One thing I certainly notice is the loud sucking sound now associated with throttle apllication. :biggrin:

One other thing I did was to polish the brushed S/S heat shield. Added nice bling bling to the engine bay, looks really sharp.

Only complaint I had was that the 2 small pieces of adaptor hose were missing and it was a bit of a pain trying to get them, so I went and got 2 lengths of blue silicone heater hose. Looks a lot better.
January brrrrrrr. You really did the cold air thing. The Blue silicone work around you did would look good!

I agree on the whole air in thing about not much hp but all adds up.

I like the inlet tubes on the GT's, they look really nice. The steeda CAI uses all the stock plastic from the factory for tubing. Nice just the same once cleaned up.
gfong is offline
Old 03-27-2005, 03:23 PM
  #6
CMOC Elite
Thread Starter
iTrader: (2)

gfong's Avatar

Join Date: Nov 2004
Location: SW Ontario
Posts: 1,785
Pics added.
gfong is offline
Old 03-27-2005, 06:20 PM
  #7
CMOC Rookie

firemedic's Avatar

Join Date: Feb 2005
Location: Pitt Meadows, BC
Posts: 98
Originally Posted by gfong
January brrrrrrr. You really did the cold air thing. The Blue silicone work around you did would look good!

I agree on the whole air in thing about not much hp but all adds up.

I like the inlet tubes on the GT's, they look really nice. The steeda CAI uses all the stock plastic from the factory for tubing. Nice just the same once cleaned up.
What do you mean brrrrr. West coast man, in fact I had to put my shorts on during the install- well it was a heated garage

Anyway, pics look good.
firemedic is offline
Old 03-27-2005, 10:42 PM
  #8
CMOC Elite

MUSTANG GUY's Avatar

Join Date: Nov 2004
Location: Toronto
Posts: 1,603
Looks good man

Glad to hear your stangs out. I cant wait to get mine out of storage... maybe this coming weekend
MUSTANG GUY is offline
Old 03-28-2005, 06:44 PM
  #9
Administrator

1low03gt's Avatar

Join Date: Jan 2005
Location: Ontario
Posts: 17,778
Nice piece.Should able to breath better then that piece 'o factory air box. :tongue:
1low03gt is offline
Old 03-28-2005, 07:59 PM
  #10
CMOC Elite
Thread Starter
iTrader: (2)

gfong's Avatar

Join Date: Nov 2004
Location: SW Ontario
Posts: 1,785
Thanks all. Now I am gonna hijack my own thread.

Someone was telling me that I could use an inlet pipe from a 99 or 01 Cobra instead of the stock one that I am using now. It would get rid of that ugly resonater box that is on there. You can see form the pics. Anyone know anything about this??? Inquiring minds need to know?? Thanks all
gfong is offline
