charging system problem,, help!


Old 06-15-2015, 03:35 PM
CMOC Rookie
Thread Starter
Join Date: Apr 2006
Location: ottawa
Posts: 84
Angry charging system problem,, help!

Hey guys, need help here,, our 67 convertible , that I just almost finished is driving me nuts,, has new alt, I have checked the diagrams , I have looked at a lot of paper work , its a 67 with a 351 stock Windsor, it was originaly a 289 with points, it now has duraspark 2 electronic ignition ,does anyone have a proper scematic of the charging system, im using the 67 diag,, only has 12.32 volts when running and 12.55 when its not,has a new battery, new alternator and a fairly new regulator, any help would be appreciated, its the last thing on the car before I can drive it,, thanks. I suspect it has something to do with the guage,,

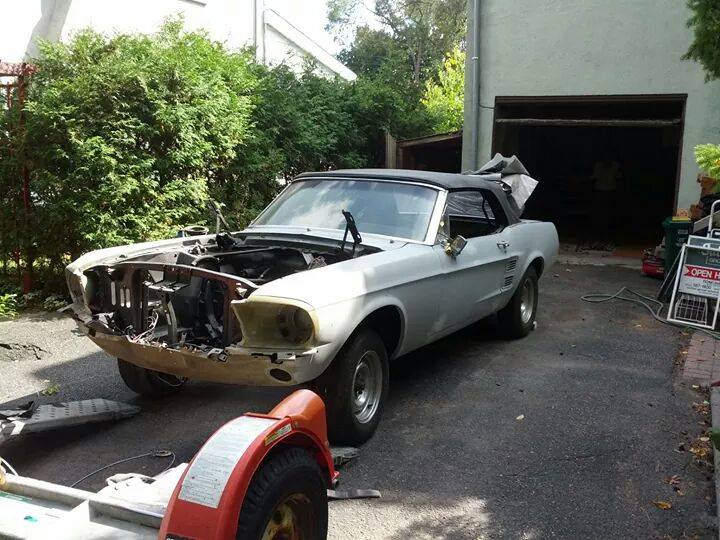

Attached Thumbnails charging system problem,, help!-before-after.jpg   charging system problem,, help!-mustang.jpg

Last edited by driver1966ma; 06-15-2015 at 03:46 PM. Reason: adding pics
driver1966ma is offline
Reply With Quote
Old 06-15-2015, 04:49 PM
CMOC Supreme poster
Ray Spencer's Avatar
Join Date: Dec 2007
Location: West Kelowna, British Columbia
Posts: 2,422
Ray Spencer is offline
Reply With Quote
Old 04-13-2017, 12:52 PM
CMOC Newbie
barrylink's Avatar
Join Date: Mar 2017
Location: Alberta
Posts: 9
charging systems are pretty basic , i would check the ground first then go to the next item. Voltage should be at 14 volts but a poor ground can make life bad, bad brushes in gen/alternator can cause this too. these are cheap fixes .
barrylink is offline
Reply With Quote
Old 04-23-2017, 11:47 AM
CMOC Rookie
kechke's Avatar
Join Date: Oct 2009
Location: Welland
Posts: 69
The most common issue with these old cars is bad grounds, look there first.
kechke is offline
Reply With Quote
