x-charger install
#1
x-charger install
Going to help a friend install a X-Charger tomorrow! Hes super excited the only v-6 supercharged Mustang around our area! I will take a few pictures of the build, and post em up!
Cheers!
Cheers!
#5
Finished up the install of the x-Charger last night, took a total of 6 hours, taking our time! It was a easy install due to the lack of inter cooler, all went well with great instructions and a well put together kit! Link
After loading the Tune the Mustang instantly roared to life! A much deeper tone and responsive throttle from the v-6 Nice Kit!
Here are a few pictures.

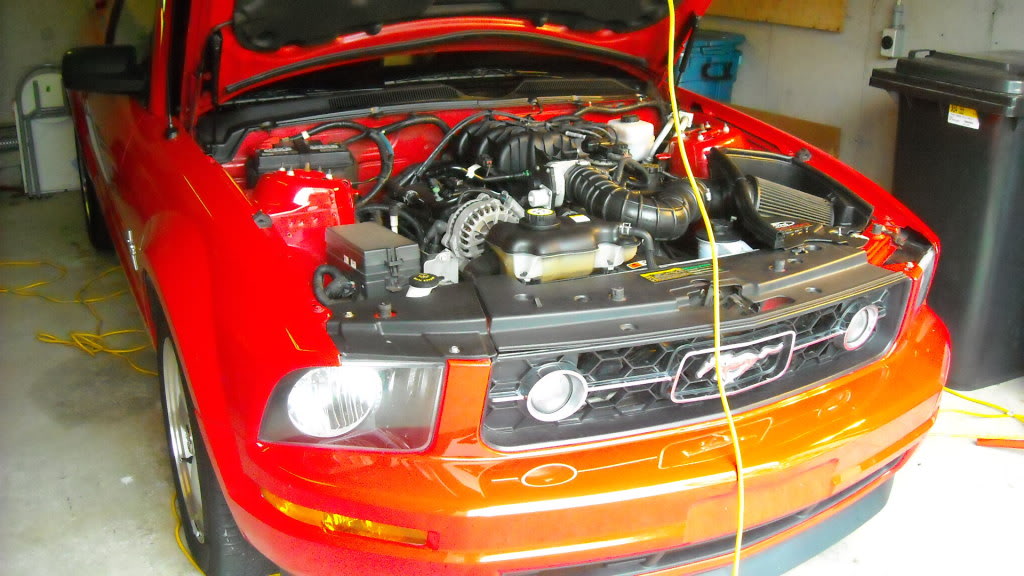

Stock shot before the tear down.

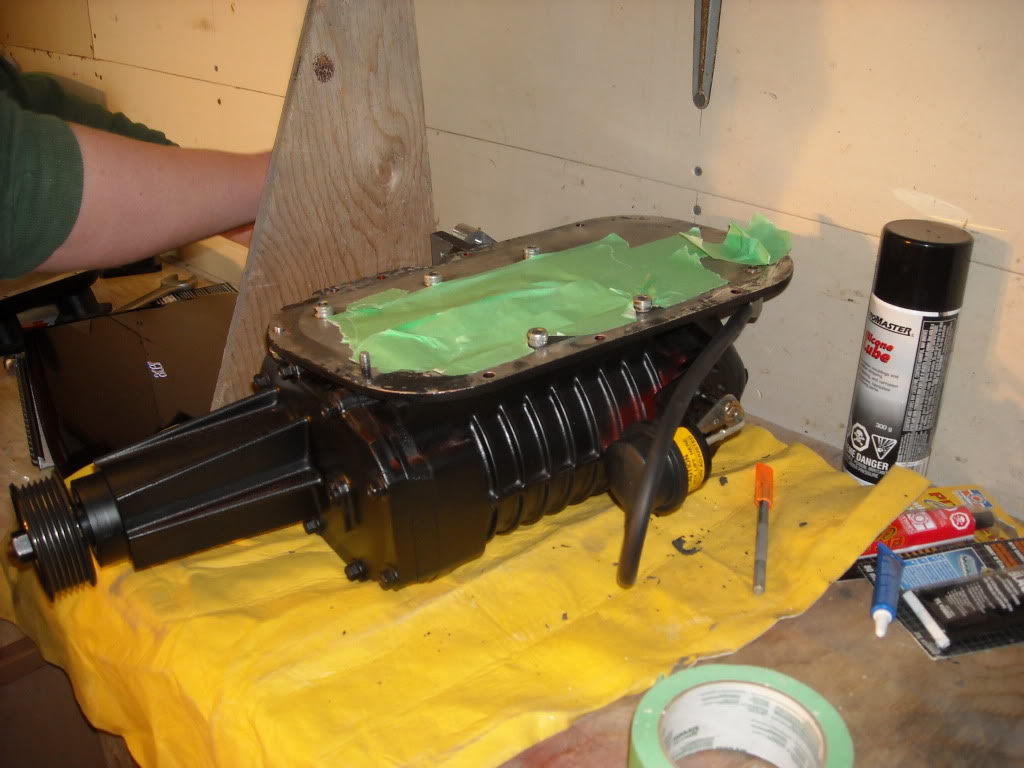

Shot of the Voodoo Box
Stock Air plenum removed
We Modded the wiring harness and lengthened several wires due to rerouting of the MAF sensor and TB sensor

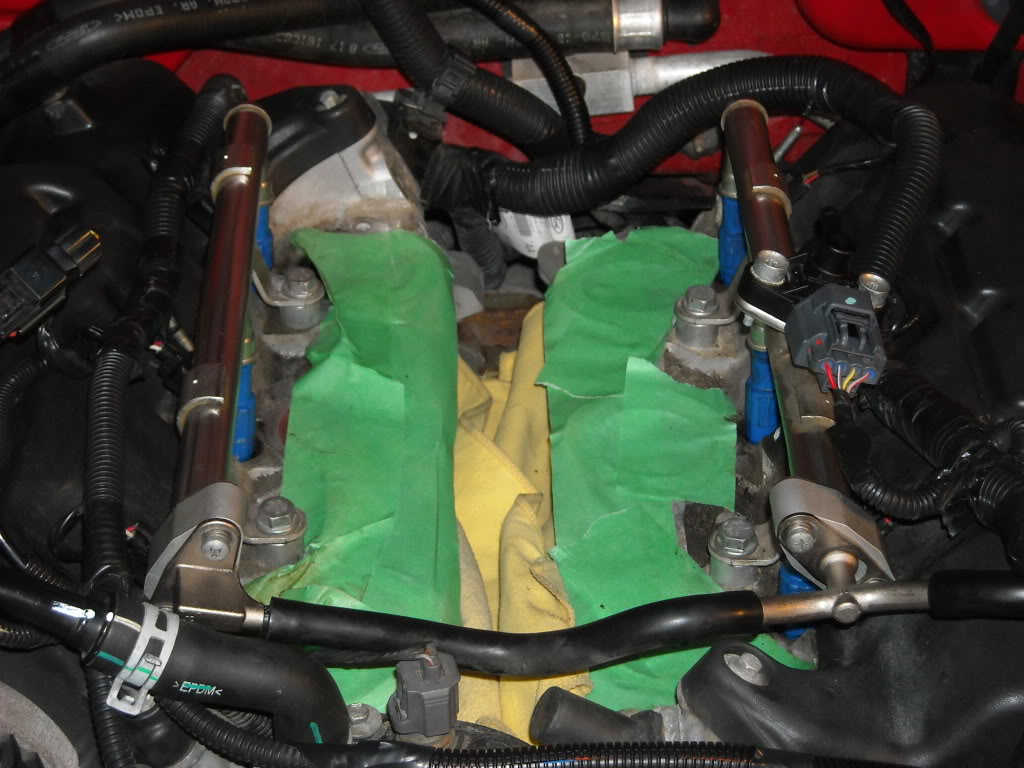

Fuel rails installed

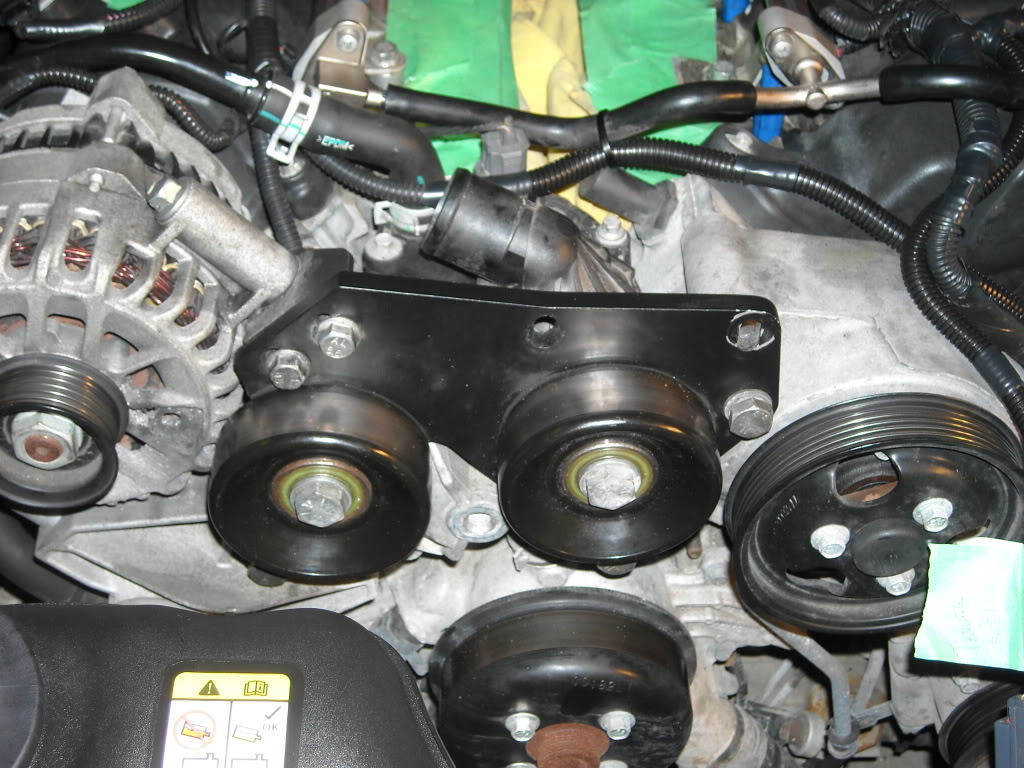

Pulley and spacer install due to rerouting the drive belt to accept the S/C

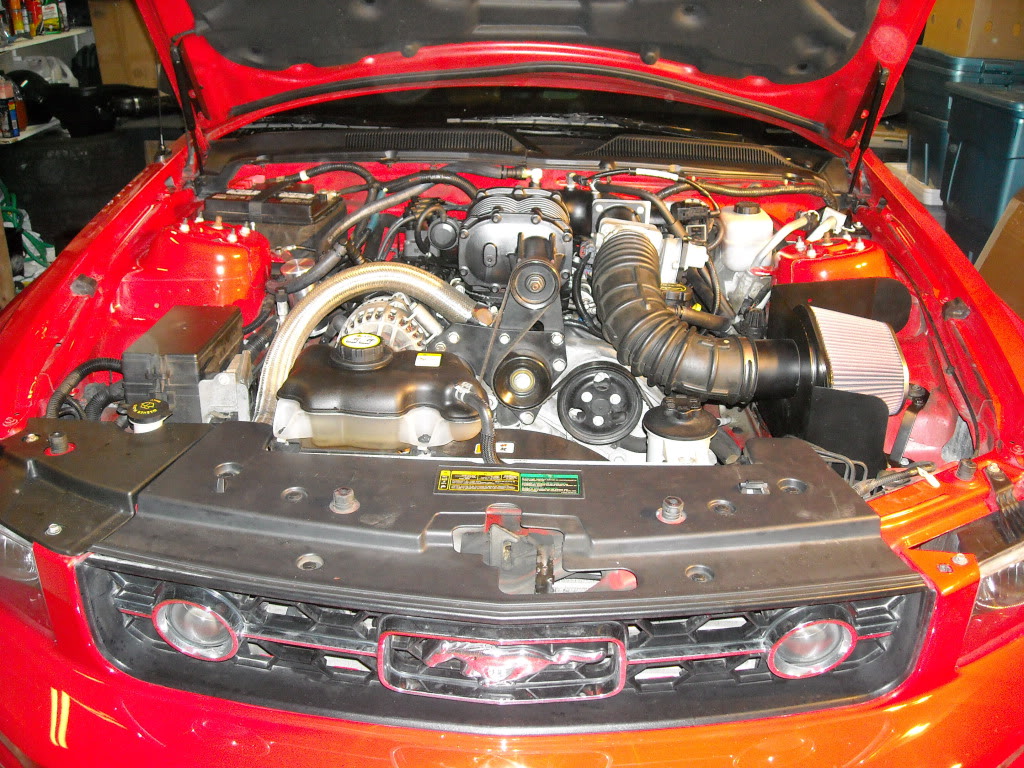

The Money shot
Cheers!
Off to the Dyno!
After loading the Tune the Mustang instantly roared to life! A much deeper tone and responsive throttle from the v-6 Nice Kit!
Here are a few pictures.
Stock shot before the tear down.
Shot of the Voodoo Box
Stock Air plenum removed
We Modded the wiring harness and lengthened several wires due to rerouting of the MAF sensor and TB sensor
Fuel rails installed
Pulley and spacer install due to rerouting the drive belt to accept the S/C
The Money shot
Cheers!
Off to the Dyno!
#6

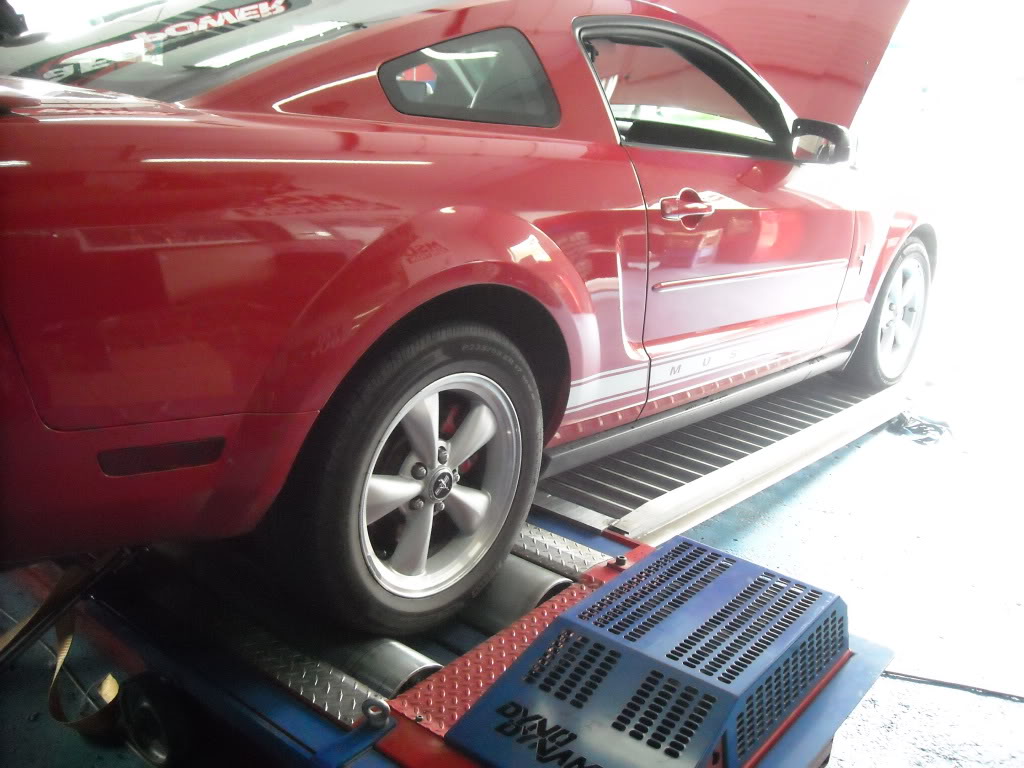

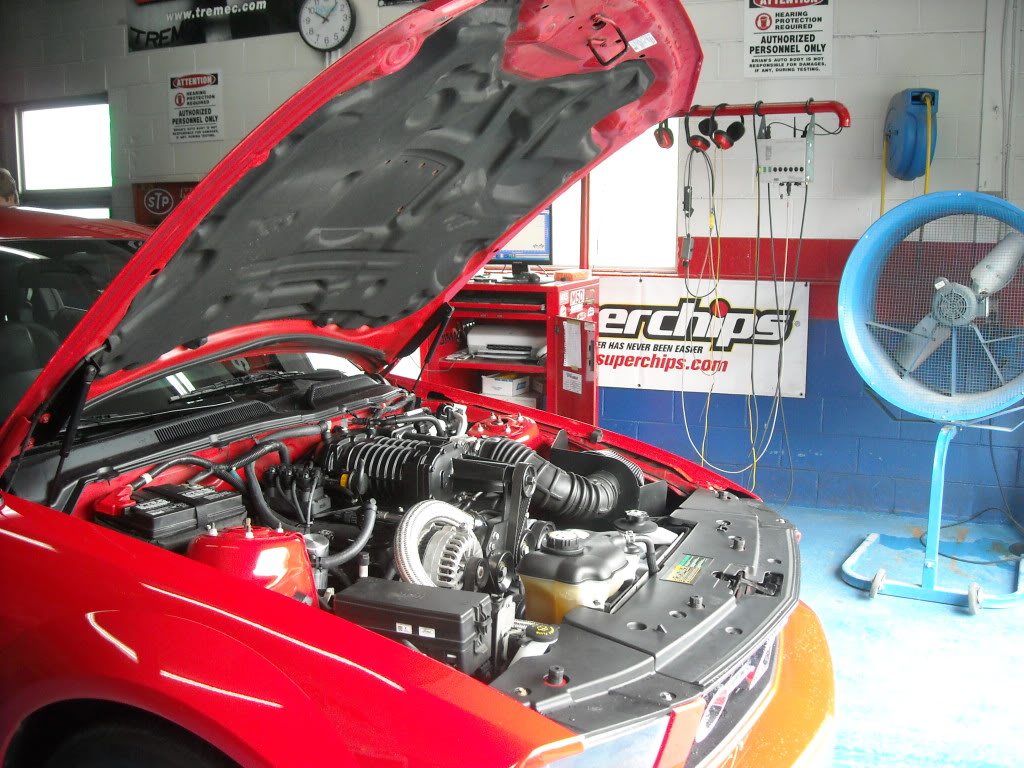

Here's a couple shots and video from the Dyno...

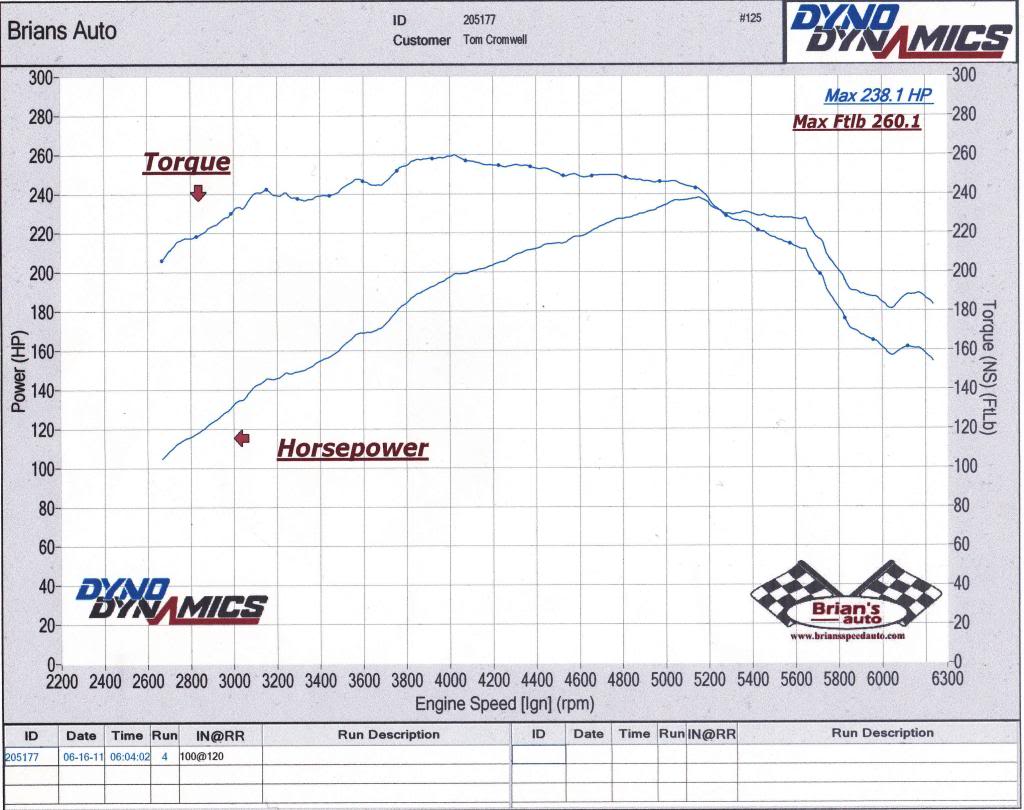

The Pony made 240HP/260Tq at the rear wheels from the results on the heart breaker, the tune was rich and the operator said at least 30 more hp could be had, Hes gonna contact the tuner for a updated tune then back to the treadmill
The Pony made 240HP/260Tq at the rear wheels from the results on the heart breaker, the tune was rich and the operator said at least 30 more hp could be had, Hes gonna contact the tuner for a updated tune then back to the treadmill
Last edited by Vapor Shelby; 06-16-2011 at 01:23 PM. Reason: Added dyno sheet
